Major Tech

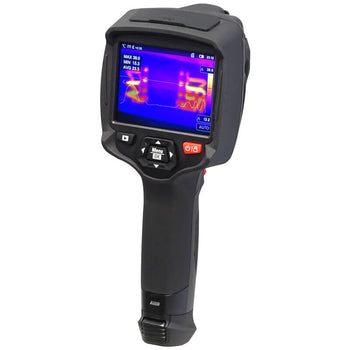

Major Tech Thermal Camera MTi15 160x120px

$3,825.00 AUD + GST

$4,207.50 AUD Inc. GST

Product Details

The MTi15 160 x 120 pixels Thermal Imager is the ideal meter for clear and accurate thermal analysis of electrical panels, motors, compressor lines and HVAC applications, the Wi-Fi enabled MTi15 Thermal Imager allows the user to transfer images and stream live video to PC or a smart device. With a 160 x 120 pix resolution at 50Hz, touch screen and manual focus, this lightweight thermal imager offers real-time detection of thermal issues effectively and is ideal for plant and maintenance electricians as well as HVAC installers.

Features

Product Videos

Specifications

Applications

160 x 120 Pixel Thermal Detector
19,200 points real temperature
Thermal Temperature Range Low -20°C to 150°C, High 0°C to 650°C
50Hz Image Frequency
3 Area and 2 Line Analysis
3 Manual Spots
Hot, Cold and Centre Spot Temperature
3.5″ TFT LCD display, Touch Screen
Instant share & save via WiFi to PC, iOS and Android smart devices
Colour Pallets include Iron, Rainbow, Grey, Grey Inverted, Brown, Blue/Red, Feather, Zone Alarm
Rugged and industrial design casing
Easy to use functions via touch screen

Imaging and Optical Data: ±(3%RH) @40% – 60% RH
Field of View: 20.7° x 15.6° /0.5m, ±(3.5%RH) @20%-40% RH and @60% – 80% RH
Spatial Resolution (IFOV): 1.88mrad, ±(5%RH) @0%-20% RH and @80% – 100% RH
Thermal Sensitivity/NETD: <0.05° at 30°C (86°F)/50mK ±(0.5°C) 10°C – 40°C
Image Range: 50Hz, ±(1.0°C) others
Focus Mode: Manual, ±(0.5°C) 10°C – 40°C
Zoom: 1 x 32 x continuous, digital zoom ±(1.0°C) others
Focal Length: 9mm
Focal Plane Array (FPA) / Spectral Range: Uncooled microbolometer / 8-14μm
IR Resolution: 160 x 120
Display: 3.5″ LCD, 640 x 480 pixels
Image Modes: IR Image, Pic-in Pic, Visual image, Fusion
Picture in Picture: IR area on visual image or visual image on IR
Colour Palettes: Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm
Temperature Range: Low -20°C to 150°C, High 0°C to 650°C
Temperature Accuracy: ± (2°C or ± 2%)
Spot: Centre spot, 3 Adjustable Spots
Line: 2 lines (horizontal or vertical)
Area: 3 Area with max/min/average
Automatic: Hot/Cold detection Auto hot or cold markers
Emissivity Correction: Variable 0.01 to 1.0, Standard Emissivity Table
Measurement Corrections: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
Storage Videos: 4Gbytes Micro SD card
Videos Format: Standard MPEG-4 encode, 640×480 at 30fps, on memory card >60 minutes
Videos Storage Mode: IR/Visual images: simultaneous storage of IR and visual images
Images Format: Standard JPEG, or HIR files including measurement data, on memory card >6000 pictures
Image Storage Mode: IR/Visual images: simultaneous storage of IR and visual images
Digital Camera Built-in: 2 Megapixels
Built-in Digital Lens Data: FOV 65°
Data Communications Interfaces: USB-Type C
USB: Data and Live Video transform between camera and PC
Wi-Fi: 802.11, image transfer and live video
Enclosure: Over moulded casing
Input System: DC 5V
Power Source: Lithium-ion, 4 hours operating time
Charging System: In camera (AC adapter)
Weight: 500g
Dimensions: 224 x 77 x 96mm
Safety Specs: EN61010-1

Ideal for real-time detection of thermal issues effectively and is ideal for plant and maintenance electricians as well as HVAC installers.
